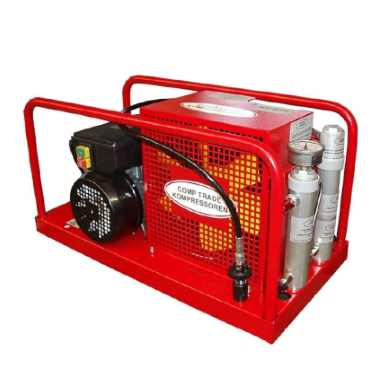

Fire CTC100 Compressor
Product Description:
CTC 100 compressors are a portable or mobile source of high-pressure breathing air that is designed for easy operation and maintenance.
- Compressor and motor mounted on frame with shock absorbers. Frame, manufactured in light weight construction, is designed for easy change of power sources.
- Micronic type intake filter
- splash lubrication
- interstage coolers
- aftercooler
- manual condensate draining of separator
- final mechanical separator for the removal of oil-/ water condensate.
Specifications:
Medium: Breathing air ACC, DIN 3188 / EN 12021
Rated overpressure: 350 bar max.
Final pressure: 225-330 bar
Drive Motor
Mono-phase electric engine (E1) - 230V, 50/60Hz; 110V 60Hz
Three-phase motor (E3) - 230V, 50Hz / 400V, 50Hz; 220V, 60Hz / 400V, 60Hz
Weight: 39 Kg
Dimensions: 35x38x36 cm
