Protekt Duo Horizontal Cable Anchorage System

Product Description:

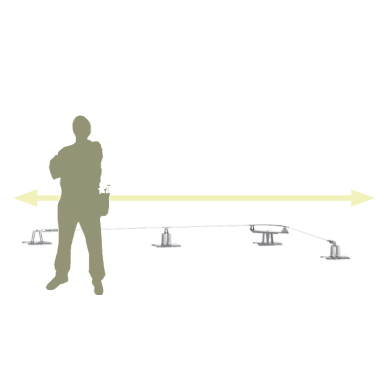

• The system consists of a horizontal guide made of stainless steel 8mm diameter wire rope.
• Duo system can be installed on roofs, by means of foot posts, as well as on walls to secure horizontal movement for people working close to edges.
• The system can be reconfigured for up to 7 users at the same time.
• Slider working as mobile anchoring point allowing for secure movement along the system with constant protection maintained.

DUO cable fall protection system is an anchorage device class C that complies with EN 795 standard. It is intended to be used by 1, 2 or 3 persons at the same time. The system can be installed to walls of buildings, steel constructions, as well as on roofs or terraces, etc. The system consists of the following elements: end, structural anchoring elements, such as foot posts or anchorage plates, intermediate, structural anchoring elements, such as cable grabs or pipe turns, energy absorbers and rope stretching elements, connecting elements, steel cable that acts as a guideline for carriage anchor point for personal protective equipment.
In case of DUO system, the quick-attached sliders are used as movable anchoring points to use with intermediate system anchoring points and carabiners being a part of personal protective equipment. All components of the system are made of corrosion resistant elements - stainless steel, brass, plastics, or hot-dip galvanized steel.
